Blacknote CDP 500

New Flagship 24bit-192KHz CD Player

The New Outstanding Tube Output & Tube Powered Design

The Blacknote CDP 500 is the new CD Player flagship offering uncompromised sound quality, blend tradition and innovation to match the expectation of the most discriminating audio enthusiasts.

CDP 500 key features:

• 100% Italian design, made and assembled in Italy.
• Sophisticated Tube Output stage with six double mini triode for superior sound quality.
• Five Super Linear power supplies & Tube Power supply to control any single stage of the unit.
• Natural-Speed design for a finer speed able to control vibration a motor noise.
• Top quality proprietary design 24bit-192KHz DAC stage using advanced technology.

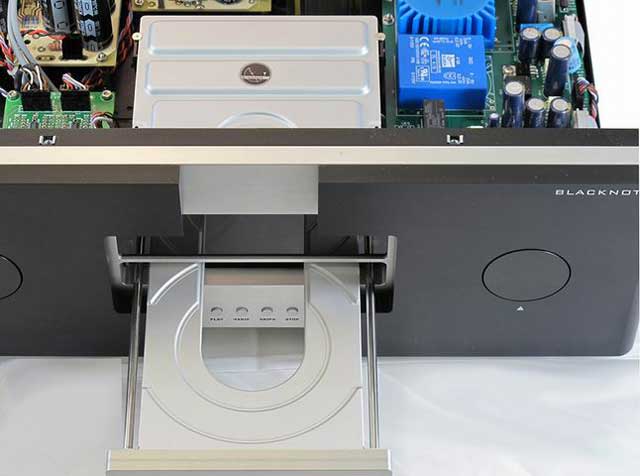

• Aluminium mechanic transport & front Loader

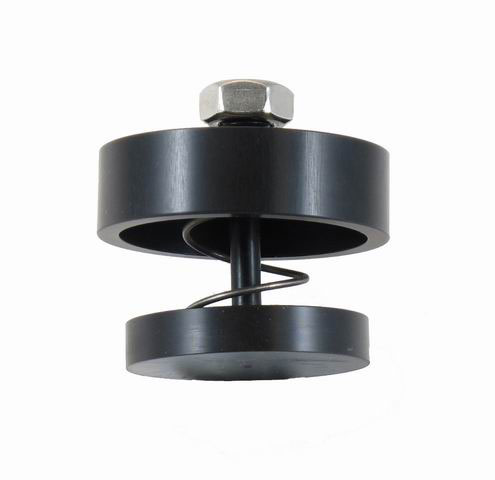

• Suspended proprietary feet made of Teflon & Aluminium to control acoustic feedback
• Double front panel high mass chassis.
• Top class RCA & XLR connectors

The CDP500 is the best Blacknote CD player ever made enables a proprietary top class design showing six double triode tubes on the output stage. The CD Player features an aluminium mechanic transport with a front loader to minimize vibration feedback.

The CDP500 is 100% designed and assembled in Italy by Blacknote that carefully and specifically manufactures any single part of the unit to offer the best possible quality.
The proprietary Digital to Analog stage is designed around a DAC offers a real 24bit resolution with the over-sampling 368 higher than the standard CD players (44,1KHz).

The Clock generator is designed around the Burr-Brown PLL1705 microchip. The PLL1705 is able to generates a very low jitter phase error, one of the lowest today available: 50-12 (50.000 billions of second).

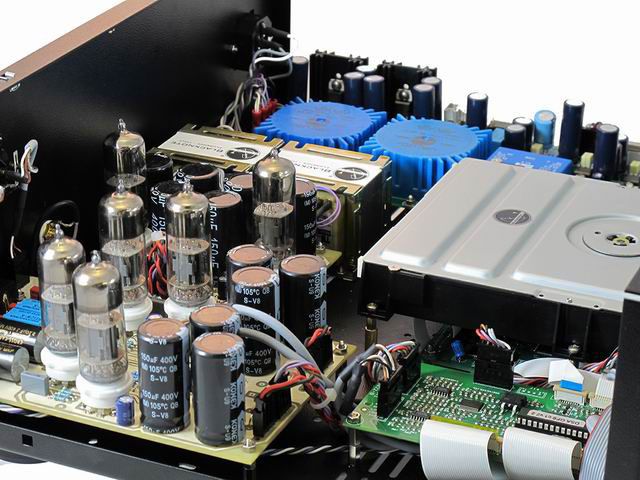

The power supply is made with five different stages managed thru five custom transformers. Any transformer supplies the power directly to a specific stage of the circuit to get the most consistent energy allows best sound performance. Also it is stabilized with sophisticated Current Generators decoupled via silicon transformers exclusively made for the CDP500. The Power Supply is managed through four OP amps singularly powered with a special multi inductive power supply.

The CDP500 features a custom design tube analog output stage made with six tubes. Such new output stage is a tube powered and truly balanced no-matching any transistor on the audio signal path in order to get the most natural sound possible.

Even the CDP500 features the Blacknote Natural-Speed™ design tunes the transport motor speed.

All the functions of the CDP500 are controlled with the top class Texas-Instruments micro controller MSP430 programmed with a special software enables easy future up-grade of the unit to keep it always fresh and modern.

The CDP500 high mass chassis together with the optimised custom suspended feet allow to perfectly control the acoustic feedback.

Technical details:

• 24bit Digital Player

• FREQUENCY RESPONSE: 20Hz - 20KHz @ +/- 0,3Db
• THD (Total Harmonic Distortion): 0,05% Max.
• SIGNAL /NOISE RATIO: 90dB
• DYNAMIC RESPONSE: 125dB

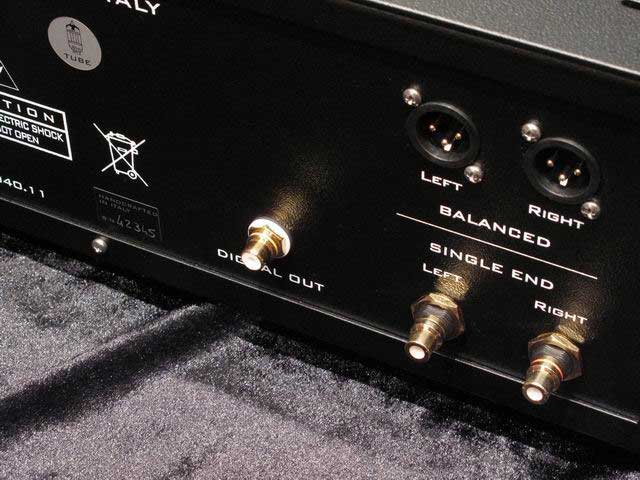

• ANALOG OUTPUT: STEREO RCA and XLR balanced outputs
• DIGITAL OUTPUT: 75 ohms RCA connector
• OUTPUT IMPEDANCE: <50ohm
• SPEED FLUCTUATION: 0,0001% Max.
• DIMENSIONS: 430mm L x 190mm H x 390mm D
• WEIGHT: 18,00 Kilos ( 39,5lbs.)
• POWER CONSUMPTION: 100watt

NOTES: The CD Player features six tubes stage and tube power supply.

• 在意大利境內設計、製作及組裝
• 由四支 12AX7 真空管組成的真空管輸出
• 每一級供電均由五隻超線性供電變壓器及兩支 6H6 真空管供電所提供
• Natural-Speed 設計帶來更佳的速度控制，減低祥打的震動噪音
• 頂級獨有比 44.1kHz 取樣高 368 倍之 24bit / 192kHz 數碼模擬器
• 採用 Burr-Brown PLL1705 時鐘產生器，只有 50ps 之超低時差，令聲音更加通透自然
• 以歐洲最新設計之 Stream Unlimited 鋁製轉盤機械及前置式入碟托盤，減低諧震
• 罕有採用鐵佛龍及鋁質組成之懸浮避震腳來控制外來諧震問題
• 高剛性雙前層面板機身設計
• 採用頂級 RCA 及 XLR 插座
• 在真正全平衡音頻輸出線路上沒有任何晶體管，故而得到最自然的音質
• 全機功能採用 Texas-Instruments MSP430 微處理控制器，其程式採用特別軟件輕易可令全機運作保持更新狀態
