來自美國的 MartinLogan 推出一系列全新的鋁帶喇叭 – Motion。採用以 MotionTM 專利的高音單元，配合精密 VojtkoTM 分音加特製的空氣芯和低 DCR 鋼叠片電感器，及纖維薄膜電容和低電解電容，能將高低音發揮得更淋漓盡致。Motion 系列有書架式、座地式及中置喇叭，能配合不同用途。流線形的箱體，突顯個人風格，更易於配襯不同的家居設計。甜美的音樂和優雅的線條，Motion 滿足您的要求。

Sonic Precision & Sophisticated Styling

Inspired by MartinLogan's ultra-high-end electrostatic loudspeakers, the Motion® Series was created to provide stunning sound for your ultimate-performance home theater or stereo. MartinLogan's dedicated in-house engineers carefully crafted the Motion Series to create an extremely affordable and compact product line that seamlessly blends our exquisite Folded Motion™ transducers with powerful, compact bass technology. The result is a smooth, refined sound with stunning dynamic range and jaw-dropping clarity.

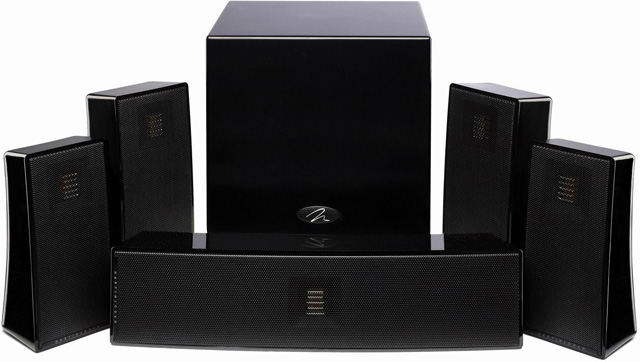

Meet The Family

Motion Series speakers are available in floor standing tower and ultra-compact center bookshelf models. Speakers can be mixed-and-matched (along with any of MartinLogan's high-performance subwoofers) to create a stunning solution for any application—from a spectacular high-performance 2-channel music system to an exhilarating multi-channel home theater system. Voice-matched with MartinLogan electrostatic speakers, Motion Series Speakers also offer a perfect solution for compact rear-channel applications in traditional electrostatic based home theater systems.

Curve Appeal

Complementing Motion's sonic accuracy is elegant yet understated styling. Flawless high-gloss, piano black finishes and subtle curves, along with our signature perforated grille, give Motion Series speakers an elegant and timeless look. Tower models feature a real-wood veneer finish and a stylish aesthetic certain to blend with any decor.

The curves also serve a purpose; they allow Motion compact bookshelves to mount at two different angles with the included wall bracket. This means you can point sound directly toward the desired listening area for high or low wall mounting applications. Beauty and brains!

Hook-ups, Simplified.

Convenient push-style speaker terminals and curved inserts help guide speaker wire effortlessly into place. The rubber end caps on the terminal are also removable for the use of banana plugs instead of bare wire. So simple, you'll actually enjoy hooking up these speakers.

Engineering Genius

What makes the Motion Series sound so amazing? MartinLogan's dedicated in-house engineering team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price. Although our engineers won't reveal exactly how they make the sausage, here are a few technologies that help give MartinLogan Motion Series such a unique sound:

Motion Series

Features:

Motion 12 - Floorstand

• Frequency Response 40–25,000 Hz ± 3dB
• Sensitivity 92 dB/2.83 volts/meter
• Impedance Compatible with 8 Ohms
• Crossover Frequency 300, 3000 Hz
• High Frequency Driver 1 x 1.4” (2.6 x 3.6cm) Folded
• Motion Transducer with 5.25 x 1.75” (13.3 x 4.4cm) diaphragm.
• Mid Frequency Driver 5.25” (13.3cm) paper cone. Dipole.
• Low Frequency Drivers Two 6.5” (16.5cm) paper cone. Ported.
• Power Handling 150 watts
• Weight 36 lbs. (16.3kg)
• Size (HxWxD) 42.8 x 7 x 14.1 (108.7 x 17.8 x 35.8cm)

Motion 10 - Floorstand

• Frequency Response 65–25,000 Hz ± 3dB
• Sensitivity 90 dB/2.83 volts/meter
• Impedance Compatible with 8 Ohms
• Crossover Frequency 3000 Hz
• High Frequency Driver 1 x 1.4” (2.6 x 3.6cm) Folded
• Motion Transducer with 5.25 x 1.75” (13.3 x 4.4cm) diaphragm.
• Mid/Low Frequency Drivers Two 5.25” (16.5cm) paper cone. Ported.
• Power Handling 100 watts
• Weight 22 lbs. (10kg)
• Size (HxWxD) 35.1 x 9.9 x 25.4” (89.1 x 25.1 x 25.4cm)

Motion 8 - Center

• Frequency Response 70–25,000 Hz ± 3dB
• Sensitivity 89 dB/2.83 volts/meter
• Impedance Compatible with 8 Ohms
• Crossover Frequency 3000 Hz
• High Frequency Driver 1 x 1.4” (2.6 x 3.6cm) Folded
• Motion Transducer with 5.25 x 1.75” (13.3 x 4.4cm) diaphragm.
• Mid/Low Frequency Drivers Two 4” (10.2cm) paper cone.
• Power Handling 90 watts
• Weight 8.5 lbs. (3.85kg)
• Size (HxWxD) 5.6 x 22.25 x 5.25” (14.2 x 56.5 x 13.3cm)

Motion 6 - Center

• Frequency Response 120–25,000 Hz ± 3dB
• Sensitivity 89 dB/2.83 volts/meter
• Impedance Compatible with 8 Ohms
• Crossover Frequency 3300 Hz
• High Frequency Driver 1 x 1.4” (2.6 x 3.6cm) Folded
• Motion Transducer with 5.25 x 1.75” (13.3 x 4.4cm) diaphragm.
• Mid/Low Frequency Drivers Two 3.5” (8.9cm) poly cone.
• Power Handling 65 watts
• Weight 6 lbs. (2.72kg)
• Size (HxWxD) 5.25 x 17.5 x 3.75” (13.3 x 44.5 x 9.5cm)

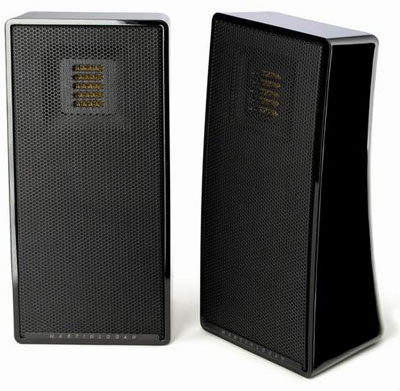

Motion 4

Motion 4 – Table stand / Rear

• Frequency Response 70–25,000 Hz ± 3dB
• Sensitivity 90 dB/2.83 volts/meter
• Impedance Compatible with 8 Ohms
• Crossover Frequency 2900 Hz
• High Frequency Driver 1 x 1.4” (2.6 x 3.6cm) Folded Motion
• Transducer with 5.25 x 1.75” (13.3 x 4.4cm) diaphragm.
• Mid/Low Frequency Drivers 4” (10.2cm) paper cone. Ported.
• Power Handling 75 watts
• Weight 6 lbs. (2.72kg)
• Size (HxWxD) 12.6 x 5.6 x 5.25” (32 x 14.2 x 13.3cm)

Motion 2

Motion 2 – Table / Rear

• Frequency Response 110–25,000 Hz ± 3dB
• Sensitivity 86 dB/2.83 volts/meter
• Impedance Compatible with 8 Ohms
• Crossover Frequency 2800 Hz
• High Frequency Driver 1 x 1.4” (2.6 x 3.6cm) Folded Motion
• Transducer with 5.25 x 1.75” (13.3 x 4.4cm) diaphragm.
• Mid/Low Frequency Drivers 3.5” (8.9cm) poly cone.
• Power Handling 50 watts
• Weight 4 lbs. (1.81kg)
• Size (HxWxD) 11.3 x 5.3 x 4.5” (28.6 x 13.3 x 11.4cm)
