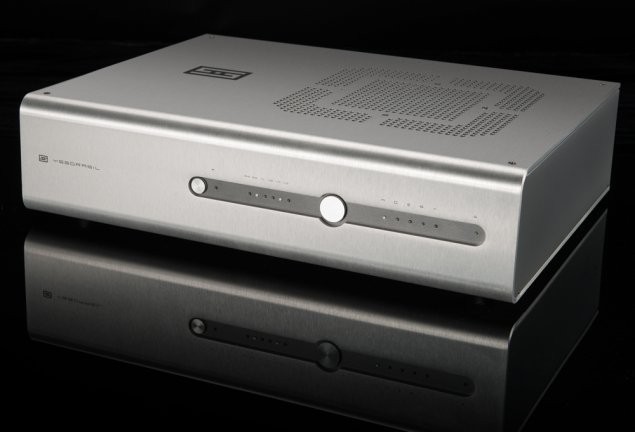

美國 Schiit 推出全新 DAC 解碼器 YGGDRASIL

美國 Schiit 推出全新 DAC 解碼器 YGGDRASIL

美國音響品牌 Schiit 由兩位資深音響人組成,分別是來自 Sumo 的 Jason Stoddard ,以及來自 Theta 的 Mike Moffat ,他們一起設計超過數十種音響及 AV 產品,其中包括 Cobalt 307 、 DS Pre 以及 Angstrom 200 等產品。 Schiit 現在的產品由放大器到耳擴均有涉及,這次該廠宣布即將推出 DAC 解碼器 YGGDRASIL ,售價約為 USD$2,299 美元。

YGGDRASIL 與一般 DAC 運用有少許不同,當一些高bit訊號輸入時,它會經轉換成以 21-bit 的精度工作,以專有的DSP的數字濾波,於 352.8 / 384kHz 取樣,經由四個 AD5791 數位模擬轉換晶片,以獨立的 JFET 輸出緩衝,以全平衡作單端 JFET 輸出,模擬輸出同時設有 XLR 和 RCA,數碼輸入是則設有 USB,AES / EBU,BNC,同軸和光纖等。

YGGDRASIL 這品牌或許較為陌生,不過這部 Schiit 用上不少獨特技術,加上以美國為生產基地,合理的訂價,美國方面原廠更提供五年保用,加上美國本土更設有 15 天試用期,可見廠方對產品的信心十足,期望東南亞的代理,能有機會引入本港試聽。

詳細規格:
  • 輸入:  AES / EBU XLR,RCA SPDIF,BNC SPDIF,光纖 SPDIF,USB
  • 輸入能力:  所有輸入對應高達24bit / 192kHz
  • 輸入接收器,SPDIF:  AKM 4313
  • 輸入接收器,USB:  C - 媒體 CM6632
  • 時鐘管理: Bitperfect 時鐘管理,透過 Adapticlock 分析和 VCXO / VCO 再生所有原生取樣率,再加上第三代非同步 USB 模組
  • 數字濾波器:  專有 Schiit bitperfect 封閉形式的數字濾波器,ADI 公司的 SHARC DSP 處理器
  • D / A 轉換 IC:  ADI 公司 AD5791 × 4 (每通道 2 個,平衡式配置)

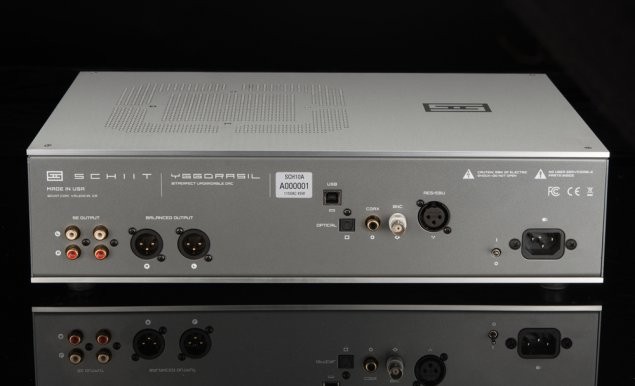

  • 輸出: 一組 XLR 平衡和兩組 RCA 單端
  • 輸出阻抗:  75 歐姆
  • 頻率響應,模擬階段:  20Hz - 20KHZ,+ / - 0.1分貝,0.5Hz - 200KHz,-1dB
  • 最大輸出:  4.0V RMS(平衡),2.0V RMS(單端)
  • THD: (20Hz - 20KHz)小於 0.006%,以全功率輸出
  • IMD:  < 0.007%,CCIR
  • 信噪比:  > 117 分貝,參考自 2V RMS
  • 電源: 兩個變壓器(一個用於數碼電源,一個是模擬電源)

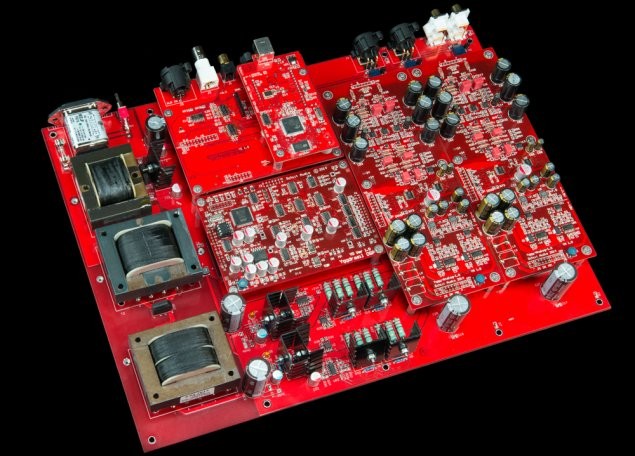

  • 可升級設計:機身採用完全模塊化的架構:單獨的數字輸入板、USB輸入板、DSP引擎板和 DAC / 模擬輸出板。
  • 功耗:  35W
  • 尺寸:  16寸 × 12寸 × 3.875寸
  • 重量: 25 磅

資料來源:http://schiit.com/products/yggdrasil

美國 Schiit 推出全新 DAC 解碼器 YGGDRASIL

美國 Schiit 推出全新 DAC 解碼器 YGGDRASIL

美國 Schiit 推出全新 DAC 解碼器 YGGDRASIL

Last modified: 2015-04-22 23:07:50



發表您對 < 美國 Schiit 推出全新 DAC 解碼器 YGGDRASIL > 的意見


31 Comments

#1 - chuttt :
2015-04-23 10:15:30


Schiit 係好嘢!
#2 - isseykit :
2015-04-23 11:22:10


Interesting comments in their FAQ

The DACs we're using—AD5791—were billed as "the industry's first true 20-bit DAC" by Analog Devices when it was introduced in 2010. Note the words "first" and "true." This is not 20-bit as defined for audio applications, this is not 24-bit delta-sigma, this is not (nudge, snicker) "32 bit" complete fantasy stuff. These DACs have never been used in an audio product until now. Normally, they are used for medical device imaging and weapons targeting—applications in which accuracy is absolutely paramount. Now, we're using 4 of them in this product—2 each per channel, for true differential hardware balanced design. Beyond that, an uber-simple discrete JFET buffer stage and discrete JFET summers (for the single-ended output) complete the picture.
Because they require very, very special care and feeding. AD5791s aren't "bolt in and go" DACs, with pleasant little paint-by-numbers application notes for use with audio. They don't even accept normal digital audio formats. Managing their use with multiple input bit depths and sample rates is, well, challenging. And special care has to be taken with their output. Plus, people are more focused on silly claims like "32-bit" DACs and "Giga-Rate" DSD. "21 real bits," doesn't sound real sexy in that context.

#3 - §中國人§ :
2015-04-23 14:59:26


Schiit 係好嘢! X 2

但網購令到代理利潤大減,所以睇怕都係要 ONLINE BUY

http://schiit.com/faq/dealers
#4 - CADiver :
2015-11-23 03:26:39


Direct purchase from Schiit, 15 days $ back guarantee. 15 days too short for break-in.
Can't wait to A/B with full stack Auralic Aeries+Vega in a couple of weeks.
Seems a promising DAC


#5 - chuckt :
2015-11-23 11:39:12


For that price, I think they should use the XMOS usb input that can take PCM384 or DSD512 instead of the lower resolution CM6632A.

Very interesting choice of dac AD5791 as it was not design for audio use and it uses voltage out so no need to do the most important part of dac design which is the I/V.
I wait for reviews with interest.
#6 - sky176 :
2015-11-25 11:51:44


唔掂啦部機
有人試過AB比較,連Accuphase DP 410都抽低佢,新出一陣就有人$15,000放二手,美國買仲有得拎返屋企試,原價退,都要放二手。即係煲完煲熟部機都係咁。
不如買Metrum,Metrume Musette同Pavane性價比都一流。
#7 - alphability :
2015-11-25 13:26:44


我部Metrum 入門 OCTAVE II 真喺好得
十年大大話話十部DAC/CD PLAYER出入,喺Metrum留家超過一年,無身痕
唔好問我Metrum有嘜好,其實無野好
低音唔打心口 中音唔暖 高音唔盡

不過每每一開聲,坐下來聽,您會繼續繼續繼續聽
荷蘭佬Meturm講技術 (NOS, no opamp) 真喺有尐野
#8 - CADiver :
2015-11-25 14:06:54



Unfortunately Metrum is not popular in the US, I need to pay more attention and look for one. Thanks for the tip. Have not done the A/B against Auralic yet, still cooking ....
#9 - chuckt :
2016-03-05 12:48:33


冇見過有二手放。這部機要長煲 warm up 至好聲。
這裡的評價比Audio GD Master 7 還高兩級.

http://www.head-fi.org/t/693798/thoughts-on-a-bunch-of-dacs-and-why-delta-sigma-kinda-sucks-just-to-get-you-to-think-about-stuff


#10 - junk :
2016-03-05 12:54:15


個名點讀
#11 - chuckt :
2016-03-05 13:10:18


Schiit = shit

Yggdrasil = igg - dra - sil
https://www.youtube.com/watch?v=undaZKGe578
#12 - chuckt :
2016-03-05 13:17:54


Metrum Octave 只係 group 係 Good Stuff 內, 同 Class E+ 有一段距離。
Class E+ > Class E > Very Good Stuff > Good Stuff > Recommend for Others
當然網上野,只可當少少參考, 不可全信.

http://www.head-fi.org/t/693798/thoughts-on-a-bunch-of-dacs-and-why-delta-sigma-kinda-sucks-just-to-get-you-to-think-about-stuff
#13 - alphability :
2016-03-06 09:13:29


美國佬GROUP野通常比較完整,十九幾樣野出到來先有高評價

METRUM OCTAVE 高音有先天缺憾 低音亦去唔盡 對美國人來講 HIFI都幾重要,高評價有段距離

METRUM OCTAVE比到您的,並不是那十九幾樣野,只是一種好平滑的連續性,如果您鐘意呢種將音樂不斷連續感覺,就算貴十倍市場上少有!
#14 - kslsfz :
2016-03-06 10:33:07


以前借過十多部DAC返嚟玩,有平有貴,最鍾意都係Metrum Octave同埋部痾到碌分身家機,兩部都係1 bit機,部Octave好特別,連Op Amp都無用,幾粒神秘ic並聯就直出RCA插,反而佢啲大佬用埋啲lundahl牛,都有啲驚會衰聲咗。

部Schiit就第一回合走人,同以前Theta啲機差不多,硬橋硬馬
#15 - chuckt :
2016-03-06 13:41:37


Schiit 唔 warm up 會衰聲,網上都講要幾個鐘至入狀態。
請問你是用那一部 Schiit, Multibit 版是不同的。連 bifrost 都有 16 bit multibit 版.

貴野唔用 opamp 係正常,transistor I/V 都係高價機常用的。
網上見 Octave 係IC 直出,好大可能用了 Ti DAC8580
http://www.diyaudio.com/forums/digital-line-level/208325-metrum-octave-dac-what-chips-used-5.html

#16 - 329 :
2016-03-06 14:25:06


大家的DAC 是否長著,使一開機便好聲
#17 - Cadiver :
2016-03-07 01:21:37


真實經驗yggy長插成四,五日至聲音順利,上次我地搬機去淨電大師到,一路用電腦電源插往去,結果去到啲聲得返兩三成,輸晒比部Auralic Mini!! 你話死味!!


#18 - Ahleung :
2016-05-08 17:32:33


煲咗一個月唔夠,D聲好正呀。報告完畢。


#19 - emanhkg :
2016-05-08 19:32:40


Ching, 請問平時待机温度熱嗎?
#20 - joeyd :
2016-05-08 19:59:51


保完息機隔幾日再開會差好遠嗎? Thanks
#21 - Ahleung :
2016-05-08 20:09:32


冇熄過機,唔係好熱。
#22 - marclee37 :
2017-02-21 00:17:05


我架YGGDRASIL 返左黎3日, 有生以來, 幾廿年聽過的原來都係唔真既聲. 宜家D聲好真實好豐富
聽返足每個數字

多唔多人用呢架? 太精采.

第一段文個介紹, 全沒提佢既強處. 係R2R完準計算 VS DELTA SIGMA估計式演繹.


#23 - ahleung :
2017-02-21 11:35:55


Hi,freya出咗,你有冇等緊佢部vidar 呀?
#24 - emanhkg :
2017-02-21 12:02:33


我用Saga, 我怕了要用2套 matched 6SN7。
加左Saga, 全面好過 Yggd 直入胆後。
我用RCA 6SN7的。
#25 - ahleung :
2017-02-21 12:21:19


用一支膽易搞,但我又想平衡,爭扎中。
#26 - emanhkg :
2017-02-21 15:04:35


我原本也是全balance的。
等到出SSVT後再轉Freya。
4支 matched 6SN7差不多要2/3机價。
早買早享受
#27 - ahleung :
2017-02-21 17:16:55


你係話lisst?
#28 - fnpc :
2017-02-22 00:11:05


DAC PCM1704u
不用較yggorasil 好
#29 - fnpc :
2017-02-22 00:19:51


本來用了數年dac1704u 損壞,有席囗換新,發現新大陸!
#30 - Faigoal :
2017-02-26 13:12:47


請問呢部好機幾錢,一定要網購?
#31 - ahleung :
2017-02-26 18:05:34


US$2,299;明碼實價,網購only.
